Sandbox

The StudioStartupHost Sandbox API lets you execute arbitrary JavaScript in a hidden Electron renderer with no network, filesystem, or Node.js access. You can optionally expose backend functions to the sandboxed code through a typed api object.

Caution

This API is marked @alpha and may change or be removed in future releases.

Quick start

The sandbox is available on StudioStartupHost and is optional, so always guard access:

import { StudioStartupHost } from "@bentley/studio-startup-apps-backend-api";

if (!StudioStartupHost.createSandbox)
  throw new Error("Sandbox execution is not available");

const sandbox = await StudioStartupHost.createSandbox();
try {
  const result = await sandbox.execute("return 2 + 2"); // 4
} finally {
  sandbox.exit(); // Always clean up
}

Exposing backend functions to the sandbox

Pass an api object of functions when creating the sandbox. These become available as api.* inside executed code:

const sandbox = await StudioStartupHost.createSandbox({
  api: {
    add: async (a: number, b: number) => a + b,
    greet: async (name: string) => `Hello, ${name}!`,
    runtimeInfo: async () => StudioHost.runtimeInfo(),
  },
});

const sum = await sandbox.execute("return await api.add(10, 5)"); // 15
const msg = await sandbox.execute("return await api.greet('World')"); // "Hello, World!"

Note

API functions run in the privileged backend process. Validate all arguments — the sandbox can pass anything serializable via structured clone (objects, arrays, ArrayBuffers, etc.). See Attack surface below.

Error handling

Errors thrown inside the sandbox propagate back to the caller with their message and stack trace:

try {
  await sandbox.execute("throw new Error('something broke')");
} catch (err) {
  // err.message === "something broke"
}

Errors in API methods also propagate back into the sandbox code, and then back to the caller if uncaught:

const sandbox = await StudioStartupHost.createSandbox({
  api: {
    fail: async () => { throw new Error("API method failed"); },
  },
});
// This rejects with "API method failed"
await sandbox.execute("return await api.fail()");

Errors do not kill the sandbox — you can continue executing after failures:

await sandbox.execute("throw new Error('first')").catch(() => {});
await sandbox.execute("throw new Error('second')").catch(() => {});
const result = await sandbox.execute("return 42"); // still works → 42

Timeouts and cancellation

Execution defaults to a 30-second timeout. Override it or use an AbortSignal:

// Custom timeout
try {
  await sandbox.execute("return longRunning()", { timeoutMs: 5000 });
} catch (err) {
  if (err instanceof Error && err.name === "TimedOutErr") {
    // timeout destroys the sandbox
  } else {
    throw err;
  }
}

// Abort signal
const controller = new AbortController();
setTimeout(() => controller.abort(), 1000);
try {
  await sandbox.execute("return new Promise(() => {})", {
    signal: controller.signal,
  });
} catch (err) {
  if (err instanceof Error && err.name === "AbortError") {
    // abort destroys the sandbox
  } else {
    throw err;
  }
}

Caution

Both timeout and abort destroy the sandbox. You must create a new one after either occurs.

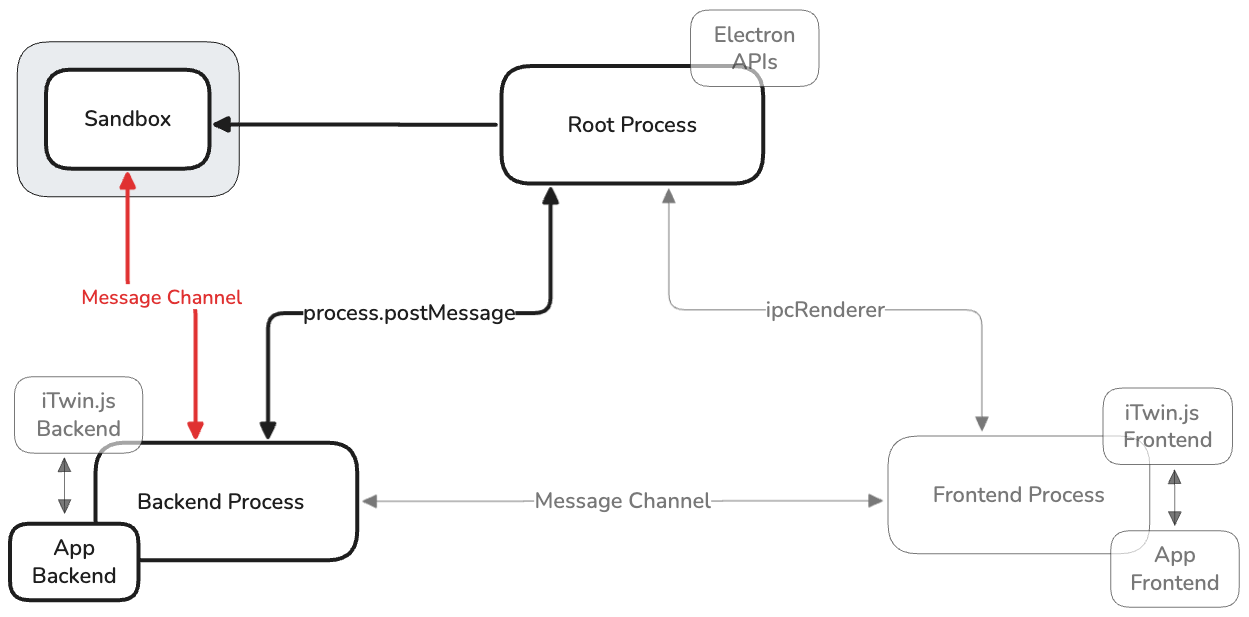

Architecture

A sandbox involves several Electron processes:

Root process is the orchestrator

The root process manages sandbox lifecycle:

1. Creation: When the backend calls createSandbox() via IPC, root process creates the sandbox.
2. Port handoff: Root process creates a MessageChannelMain pair and sends one into the sandbox window, and forwards the other to the backend process.
3. Teardown: When the backend calls exitSandbox(id), root closes the sandbox.

Backend ↔ sandbox communication

The backend and sandbox preload communicate directly using the MessageChannelMain pair.

Backend → Sandbox:

• api-init — sends list of API method names the sandbox can call
• execute — sends JavaScript code string to run
• api-result / api-error — returns results of API calls the sandbox made

Sandbox → Backend:

• ready — confirms API was initialized
• result / error — returns execution results
• api-call — invokes a backend-provided API method

Security

Isolation layers

The sandbox applies multiple isolation layers:

• Chromium sandbox — sandbox: true enables the OS-level Chromium sandbox
• No Node.js — nodeIntegration: false with contextIsolation: true
• Network blocking — session-level request filter cancels all non-data: URIs
• Content Security Policy — default-src 'none'; base-uri 'none'; form-action 'none'; navigate-to 'none' blocks inline scripts, eval, external <script> tags, all asset loading, <iframes>, etc.
• Window — devTools: false, disableDialogs: true, window.open denied

Attack surface

Practically the only attack surface is the API functions exposed via options.api, since those run in the privileged backend process with whatever arguments the sandbox sends.

• Validate arguments — the sandbox can send any structured-clone-serializable value (ArrayBuffer, RegExp, Map, nested objects), not just JSON primitives. Validate all data.args before using them.
• Limit scope — expose only the minimum set of functions the sandbox needs.
